Fiscal Metering

Fiscal turbine meters can be recognised by the 3D body lenght. This is one of the requirements for MID approved gas flow meters. Non Fiscal meters are mostly used in the industry as process RMG delivers these meters with a mechanical display or with a digital display. Meters with a digital display can also be equipped with a temperature and pressure sensors for output of vulome corrected flow.

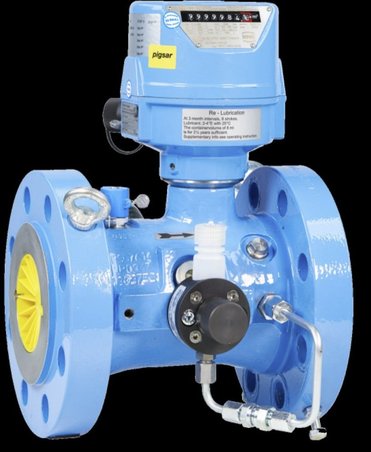

TRZ03

Mechanical Meter

Main Features:

Suitable for gases according to DVGW worksheet G-260
100% Hydrogen suitable
Special design for aggressive gases is possible
Roller counter, which registers the total volume and displays it at any time without a power supply
High measuring accuracy
Horizontal or vertical gas flow
Optionally with mechanical output clutch
TRZ 03E without mechanical counter, with electronic tap for computer systems
LF pulsed output standard
LF2, HF1, HF2 and HF3 optionally available

Sizes:

Operating pressure: pmax = 100 bar
Measuring size: G 65 to G 16000 (from Qmax 100 m³/h to Qmax 25.000m³/h)
Measuring range: max .1 : 50
Flanges: PN 10, PN 16, PN 25, PN 40, PN 100 and ANSI 150, ANSI 300, ANSI 600
Diameters: DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN 400, DN 500, DN 600

Download brochure

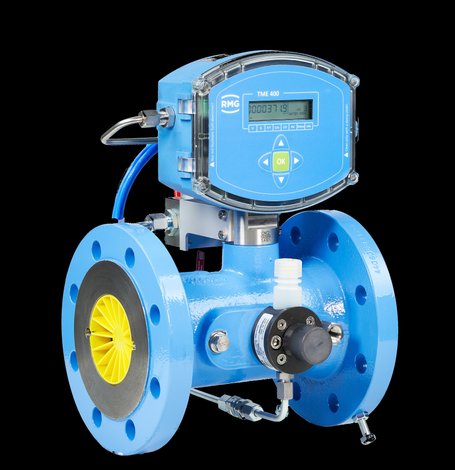

TME400 VMF/VCF

Digital Meter

Main Features:

MID approved by NMI
100% Hydrogen suitable
Meets or exceeds the requirements of DIN/EN 12261 for gas meters and DIN/EN 12405 for volume correctors
Overall length 3xDN according to DIN/EN 12261
Optionally:
- Integrated temperature and pressure measurement
- Display of pressure, temperature, volume and flow rate, each in operating and standard status
- Simple and inexpensive assembly, as installation work for pressure and temperature measurement is not required
Integrated measurement archives
Battery operation (6 years), external supply optional
Serial interface (Modbus)
Current output optional (with external power supply), optionally for flow rate, pressure or temperature
Durable, low maintenance and robust
Horizontal or vertical mounting position possible
Electronic linearization of the error curve (with external supply)
Special versions for corrosive gases (e.g. raw biogas)
Operation / parameter setting via the RMGViewTME diagnostic software.

Sizes:

Measuring size: G 65 to G 4000 (from Qmax 100 m³/h to Qmax 6.500m³/h)
Flanges: PN 10, PN 16, PN 25, PN 40, and ANSI 150, ANSI 300,
Diameters: DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300,

Download brochure
