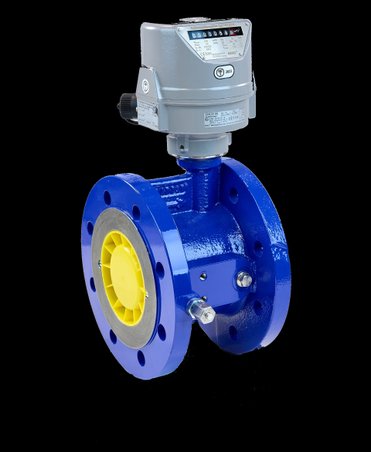

Mechanical Meter

Main Features:

• 100% Hydrogen suitable
• Special design for aggressive gases is possible
• Roller counter, which registers the total volume and displays it at any time without a power supply
• High measuring accuracy
• Horizontal or vertical gas flow
• Optionally with mechanical output clutch
• LF pulsed output standard
• LF2, HF1, HF2 and HF3 optionally available

Sizes:

• Operating pressure: pmax = 100 bar
• Measuring size: G 65 to G 16000 (from Qmax 100 m³/h to Qmax 25.000m³/h)
• Measuring range: max .1 : 50
• Flanges: PN 10, PN 16, PN 25, PN 40, PN 100 and ANSI 150, ANSI 300, ANSI 600
• Diameters: DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN 400, DN 500, DN 600

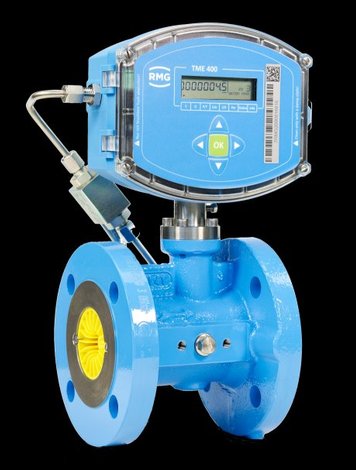

Digital Meter

Main Features:

• 100% Hydrogen suitable
• Optionally:
  • Integrated temperature and pressure measurement
  • Display of pressure, temperature, volume and flow rate, each in operating and standard status
  • Simple and inexpensive assembly, as installation work for pressure and temperature measurement is not required
• Integrated measurement archives
• Battery operation (6 years), external supply optional
• Serial interface (Modbus)
• Current output optional (with external power supply), optionally for flow rate, pressure or temperature
• Durable, low maintenance and robust
• Horizontal or vertical mounting position possible
• Electronic linearization of the error curve (with external supply)
• Special versions for corrosive gases (e.g. raw biogas)
• Operation / parameter setting via the RMGViewTME diagnostic software

Sizes:

• Measuring size: G 16 to G 6500 (from Qmax 25 m³/h to Qmax 10.000m³/h)
• Flanges: PN 10, PN 16, PN 25, PN 40, and ANSI 150, ANSI 300,
• Diameters: DN25, DN40, DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, DN 300, DN400
